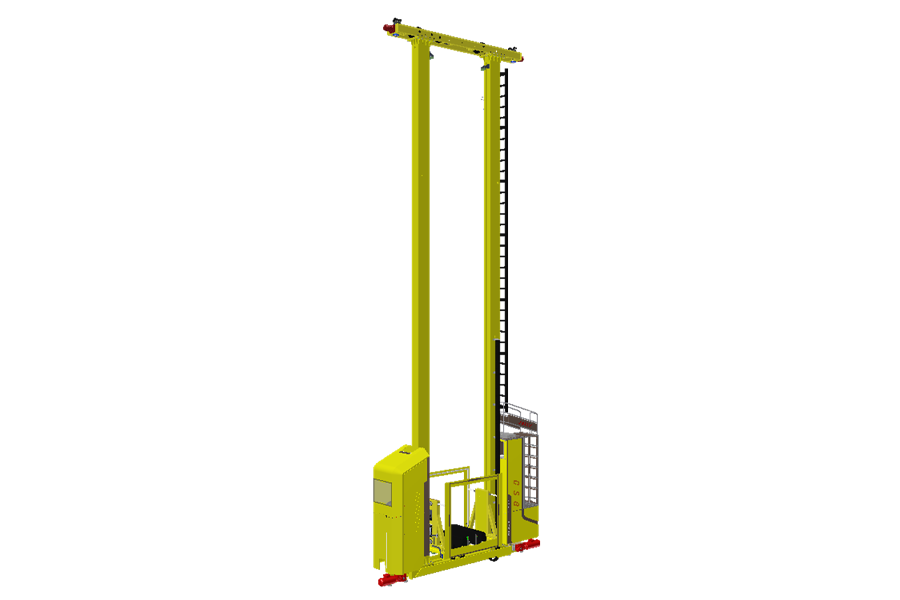

Can stacker cranes really significantly enhance warehouse storage efficiency?

In appropriate scenarios, stacker cranes can indeed significantly enhance warehouse storage efficiency; however, if the warehouse conditions do not align with the business model, the improvement may not be substantial, and could even be counterproductive.

1. What the stacker crane improves first is "space efficiency"

Traditional flat warehouses or forklift-operated warehouses are usually limited by:

Manual operation height

Channel width

Safety clearance

With the combination of stacker cranes and three-dimensional racks, the warehouse can be optimized to:

"Towards high development"

"Draw closer to the density"

1. The height of the warehouse is fully utilized

The effective height of traditional warehouses is mostly between 5 and 8 meters

The three-dimensional warehouse can reach heights of 15 meters, 20 meters, or even higher

On the same piece of land, the number of storage units per unit area has doubled, which is the most intuitive "efficiency improvement".

2. Narrower aisles and denser storage locations

The stacker operates within a fixed aisle:

The width of the passage can be controlled at around 1.5-2 meters

"Much smaller than the passage required for a forklift"

Reducing the area of passageways essentially transforms "spaces for walking" into "spaces for storing goods".

2. Improving work efficiency, but not "the faster the better"

1. The inbound and outbound takt time is more stable

Manual or forklift operation:

It is greatly influenced by personnel proficiency

It is prone to congestion during peak hours

The advantages of stacker cranes are as follows:

The operational rhythm is fixed

Accurate alignment

"Not feeling tired"

Stability is often more valuable than extreme speed.

2. Continuous multi-task operation

Through WMS/WCS scheduling:

"Tasks that can be queued in advance"

Plan the retrieval and placement sequence reasonably

Reduce empty travel

When tasks are organized properly, the overall throughput is significantly higher than that of manual random operations.

III. Which warehouses have shown the most significant effects?

The stacker is not a "one-size-fits-all solution". Its advantages are most prominent in the following scenarios:

1. Large inventory volume and relatively stable turnover

Raw material warehouse

Semi-finished product warehouse

Temporary storage warehouse for finished products

The improvement of storage efficiency is often more important than the ultimate outbound speed.

2. SKU is moderate, with clear rules

The specifications of the trays are uniform

The size of the goods is stable

The rules for inventory inflow and outflow are clear

This type of warehouse is more conducive to leveraging the continuous operation advantages of stacker cranes.

3. Land or height resource shortage

Urban factory

High land cost

Expansion space is limited

By "asking for more space", the value of stacker cranes will be further amplified.

4. Why do some warehouses feel "not so cost-effective"?

1. Business changes too fast

SKU frequently changes

The rules for inventory inflow and outflow are frequently adjusted

There are many last-minute orders

The stacker system relies heavily on rules, and the more changes there are, the greater the scheduling difficulty becomes.

2. Throughput demand is overestimated

Some projects only focus on "peak values" and ignore:

Actual daily average inbound and outbound volume

Duration of goods in stock

If the throughput is not high, the advantages of the stacker crane cannot be fully unleashed.

3. Ignoring the overall system design

The stacker itself is merely an execution device:

Is the front-end conveyance smooth

Is the system scheduling reasonable

How to coordinate with manual labor and other equipment

These factors often determine the ultimate "perceived efficiency".

5. One-sentence summary

The most significant improvement brought by the stacker crane is its "storage capacity per unit area"

The improvement in operational efficiency stems from stability and system scheduling, rather than mere speed

Only when the business model matches can we truly achieve "significant improvement"
